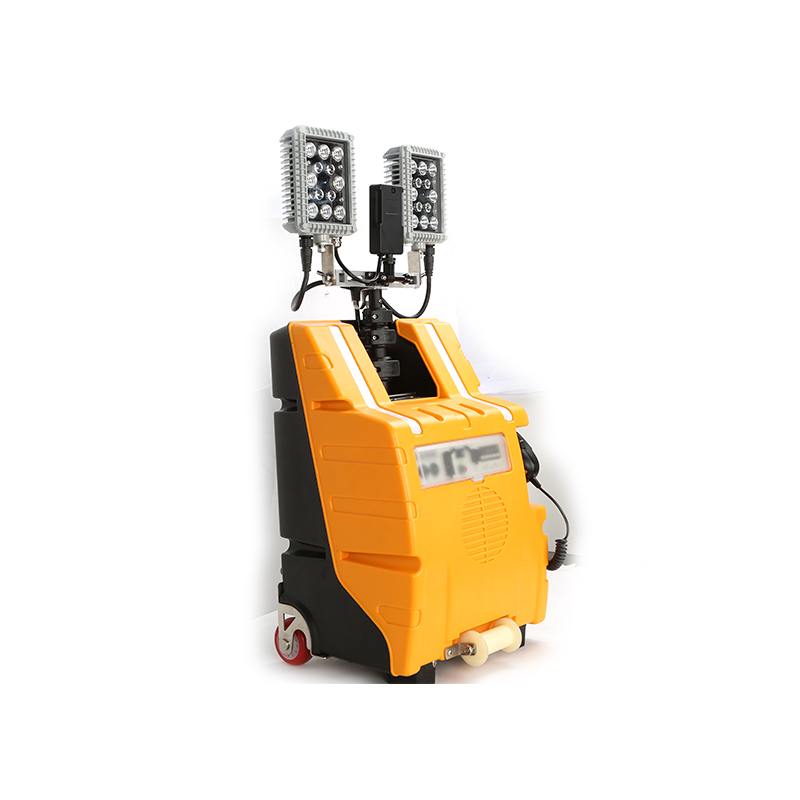

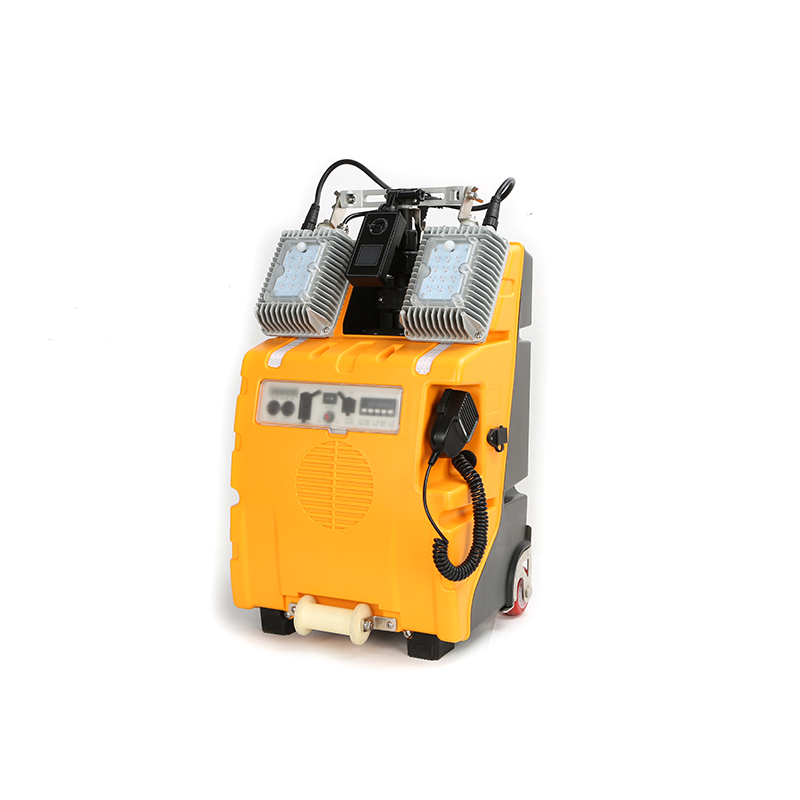

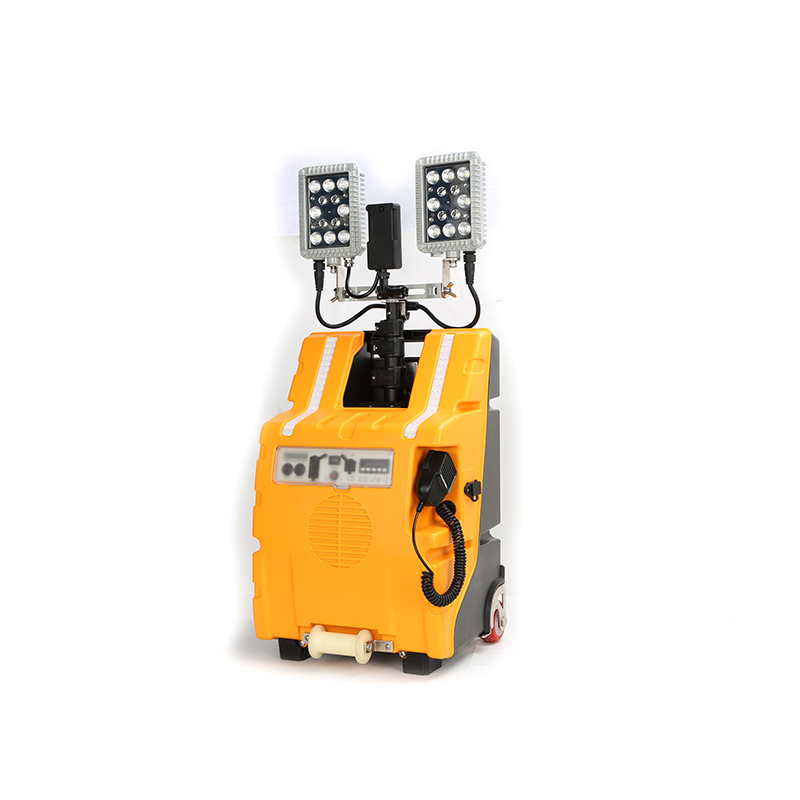

PLT892 Multi-function mobile lighting system
Application:
PLT892 mainly used in railway construction, electricity, power supply, traffic segment, flood prevention command, natural disasters rescue, criminal scene, traffic accident scene and other types of crime scene, traffic accident investigation, highway checkpoints, public security emergency reserves and other large-scale construction operations, accident repair, disaster relief and other on-site for mobile lighting.
Feature：
- Small size, light weight. It is telescopic, portable and wearable. When used on a rail system, its bottom mounted rail wheel which can be used to facilitate long distance movement on the rail.
- Lamps adopt high luminous efficiency LED, with spotlight / floodlight mode. It can be used alone or at the same time, which is enable to meet the needs of long-range searchlight and close close-range working light.
- The light use 4 paths telescopic rod as a lifting adjustment method. According to the requirements of the lighting height to lift the lights manually. The maximum height is 1.8 meters. Each lamp is able to do 360-degree vertical and horizontal rotation, providing multi-angle lighting needs.
- The light equips with high-capacity, high-performance lithium battery, which is large capacity, low self-discharge rate. After a full charge, the flood and spot light work 8 hours at the same time. - Contains camera, video, signal warning, recording, amplification and player functions to meet the needs of different users.
- Compatibility, equips a standard USB charging interface for mobile phones and other digital products. Solve the problem of exhausting power of digital products such as mobile phone. Guarantee a long time working condition.
Technical Parameters
No. | Parameter | Unit | Value | ||
1 | Battery rated voltage | V | DC25.9 | ||
2 | Battery rated capacity | Ah | 22 | ||
3 | Lighting method |
| Spotlight / Floodlight | ||
4 | Continuous lighting time | Floodlight lighting time | H | ≥12 | |
Spotlight lighting time | H | ≥22 | |||
Spotlight / Floodlight lighting time | H | ≥8 | |||
5 | Charger input voltage | V | AC220V | ||
6 | Camera Pixel | M | 8 | ||
7 | Camera / Picture Format | / | MP4/JPFG | ||
8 | Camera storage capacity | G | 32 | ||
10 | Warning light color | / | Red/yellow / blue optional | ||
12 | Power amplifier board (speaker) power | W | 30 | ||
13 | Battery life | cycle | About 500 times | ||
14 | Charging time | H | ≤6 | ||
15 | Dimensions (L * W * H) | Shrinking state | MM | 350×326×620 | |
Rise state | MM | 350×326×1845 | |||
16 | Weight | KG | 16 | ||
17 | Use the ambient temperature |
| ℃ | -20~40 | |
18 | Protection level | Waterproof (light head ) | / | IP65 | |
Waterproof (Box body) | / | IP54 | |||
