Product Detail
Description:

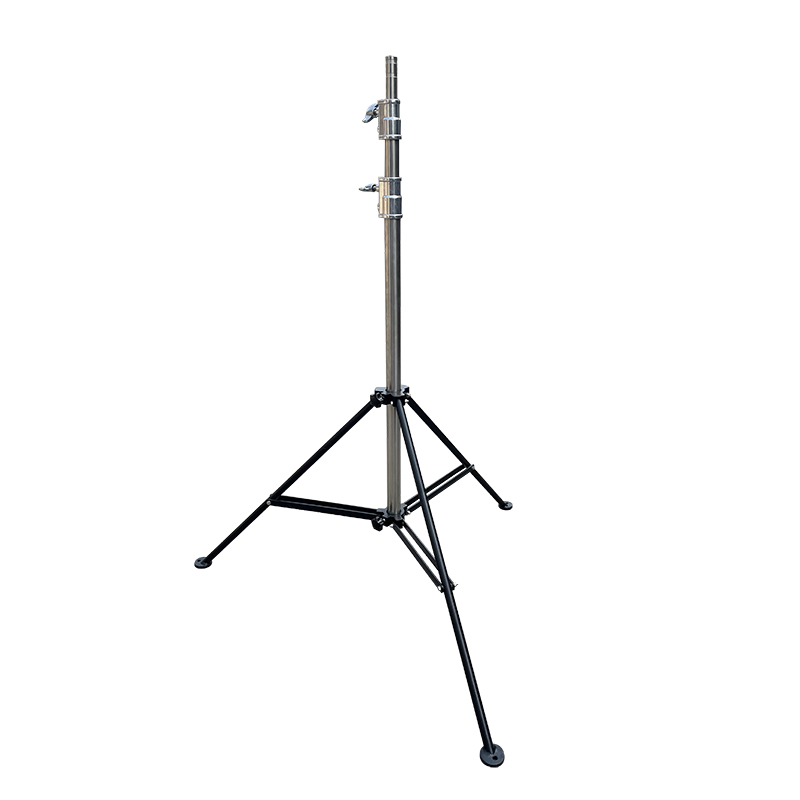

Manual lifting mast is mainly designed for lifting professional portable lighting equipment.The mast can be fixed in the side of tripod or trailor.Regular extended heights are 1.5m, 2.8m, 4.0m, 4.5m.Specific requests can be customized.
Between each section of mast,there is nut,which is to fix the mast when mast extends.It can be loosen if we want to retract mast.
Specifications:
Model number | SJS-15 | SJS-28 | SJS-40 | SJS-45 |
Closing height | 835 | 1130 | 1550 | 1700 |
Extended height | 1500 | 2800 | 4090 | 4500 |
Section | 2 | 3 | 3 | 4 |
Max diameter | Φ32 | Φ38 | Φ38 | Φ45 |
Weight | ≈2Kg | ≈4Kg | ≈5.5Kg | ≈7Kg |
Max payload | ≤15Kg | |||
Material | 304 stainless steel(surface millor polishing) | |||
Model number | SJS-15 | SJS-28 | SJS-40 | SJS-45 |
Closing height | 835 | 1130 | 1550 | 1700 |
