Description:

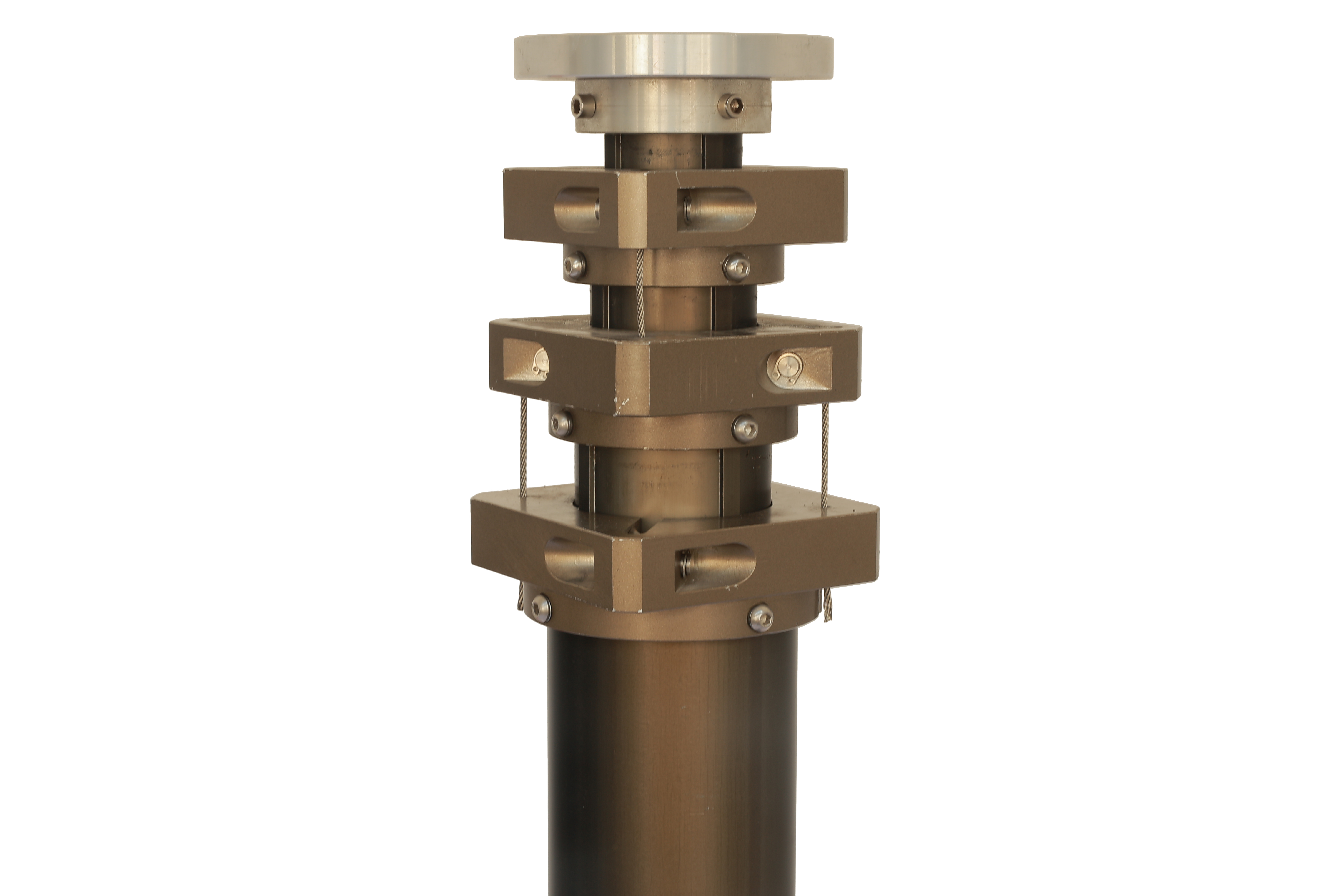

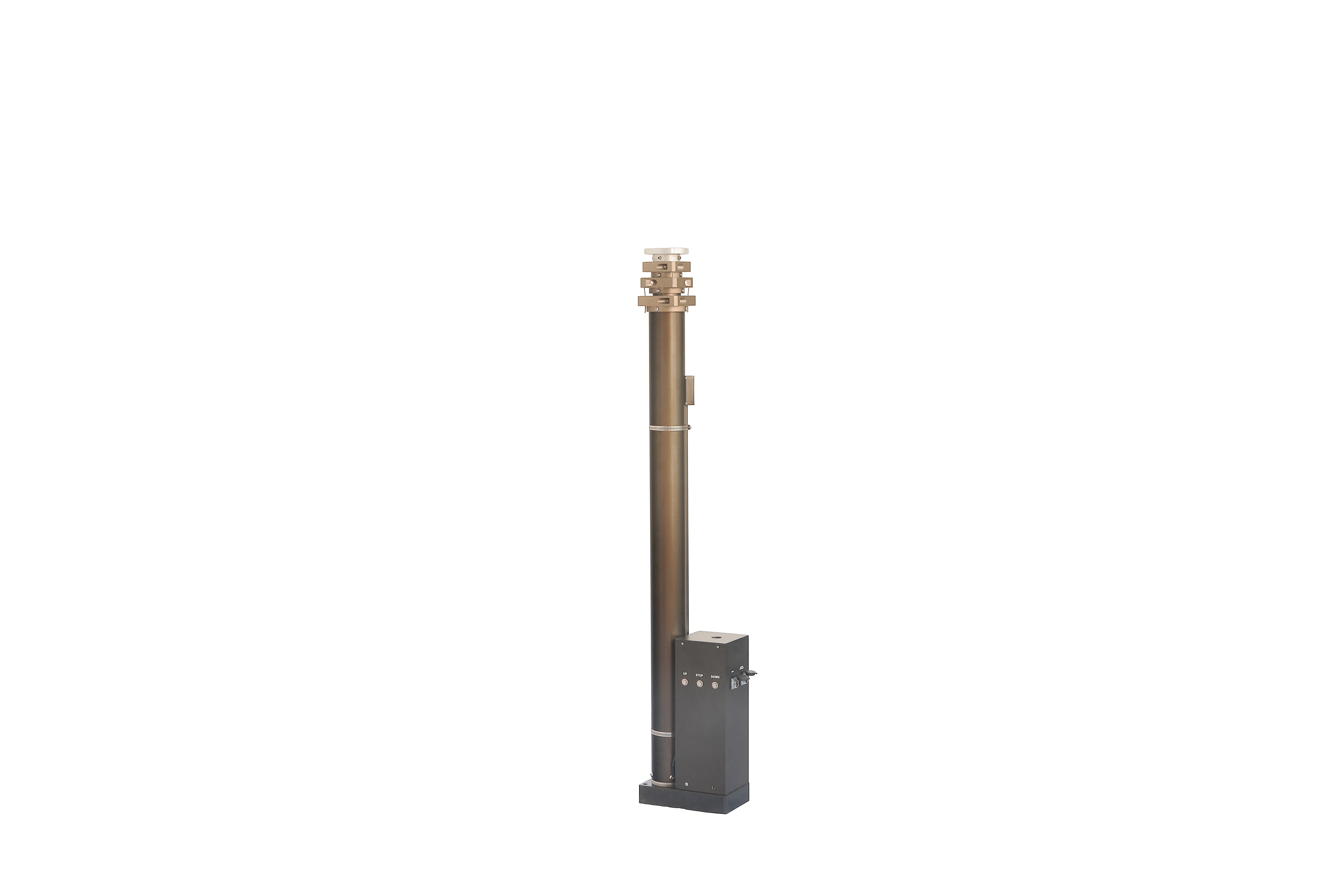

SG series mast is a telescopic mast pole specially designed for vehicle-mounted lighting equipment,radio and communication devices. The mast is fixed in the cabin or the periphery of the vehicle body, and vertically lifts lights, camera , antenna equipment, etc., to achieve customer predetermined functions.
SG series lifting mast can choose 3.5m-15m different height according to different requirements. If the scope of this range can not meet the work needs, we can customize according to your requirements.
Specifications:
Model | Pitch | Rising Height L1m | Closing Height L2mm | Mounting Height L3mm | Mounting hole diameter A1mm | Max diameter A2mm | Load weight Kg | Diameter A3 mm | Diameter A4 mm | Mounting hole diameter |
SG35-1 | 3 | 3.5 | 1635 | 1520 | Φ85 | Φ133 | 120 | Φ200 | Φ230 | 4-Φ13 |
SG35-2 | 3 | 3.5 | 2010 | 1913 | Φ34 | Φ68 | 50 | Φ105 | Φ130 | 4-Φ11 |
SG45-1 | 4 | 4.5 | 1670 | 1520 | Φ65 | Φ133 | 100 | Φ200 | Φ230 | 4-Φ13 |
SG45-2 | 4 | 4.5 | 2170 | 2020 | Φ65 | Φ133 | 100 | Φ200 | Φ230 | 4-Φ13 |
SG55-1 | 4 | 5.5 | 1785 | 1630 | Φ65 | Φ133 | 100 | Φ200 | Φ230 | 4-Φ13 |
SG55-2 | 4 | 5.5 | 2225 | 2070 | Φ65 | Φ133 | 100 | Φ200 | Φ230 | 4-Φ13 |
SG65-1 | 5 | 6.5 | 1770 | 1570 | Φ45 | Φ133 | 80 | Φ200 | Φ230 | 4-Φ13 |
SG65-2 | 5 | 6.5 | 1950 | 1750 | Φ45 | Φ133 | 80 | Φ200 | Φ230 | 4-Φ13 |
SG65-3 | 4 | 6.5 | 2235 | 2080 | Φ65 | Φ133 | 100 | Φ200 | Φ230 | 4-Φ13 |
SG75-1 | 6 | 7.5 | 1790 | 1540 | Φ45 | Φ160 | 80 | Φ200 | Φ230 | 4-Φ13 |
SG75-2 | 6 | 7.5 | 1845 | 1595 | Φ45 | Φ16 | 80 | Φ200 | Φ230 | 4-Φ13 |
SG75-3 | 5 | 7.5 | 1990 | 1780 | Φ65 | Φ160 | 100 | Φ200 | Φ230 | 4-Φ13 |
SG75-4 | 5 | 7.5 | 2120 | 1915 | Φ65 | Φ160 | 100 | Φ200 | Φ230 | 4-Φ13 |
SG85-1 | 6 | 8.5 | 2015 | 1770 | Φ45 | Φ160 | 80 | Φ200 | Φ230 | 4-Φ13 |
SG85-2 | 6 | 8.5 | 2315 | 2070 | Φ45 | Φ160 | 80 | Φ200 | Φ230 | 4-Φ13 |
SG85-3 | 5 | 8.5 | 2300 | 2090 | Φ65 | Φ160 | 100 | Φ200 | Φ230 | 4-Φ13 |
SG100-1 | 6 | 10 | 2290 | 2040 | Φ45 | Φ160 | 80 | Φ200 | Φ230 | 4-Φ13 |
SG100-2 | 6 | 10 | 2300 | 2040 | Φ65 | Φ190 | 100 | Square185×185 | Square230×230 | 4-Φ13 |
SG100-3 | 7 | 10 | 2400 | 2100 | Φ45 | Φ190 | 80 | Square185×185 | Square230×230 | 4-Φ13 |
SG100-4 | 7 | 10 | 2400 | 2090 | Φ65 | Φ210 | 100 | Square195×195 | Square245×245 | 4-Φ17 |
SG120-1 | 7 | 12 | 2395 | 2095 | Φ45 | Φ190 | 80 | Square185×185 | Square230×230 | 4-Φ13 |
SG120-2 | 7 | 12 | 2400 | 2050 | Φ65 | Φ210 | 100 | Square195×195 | Square245×245 | 4-Φ17 |
SG120-3 | 7 | 12 | 2500 | 2050 | Φ45 | Φ190 | 80 | Square185×185 | Square230×230 | 4-Φ13 |
SG120-4 | 7 | 12 | 2500 | 2190 | Φ65 | Φ210 | 100 | Square195×195 | Square245×245 | 4-Φ17 |
SG150-1 | 7 | 15 | 2975 | 2615 | Φ65 | Φ210 | 100 | Square195×195 | Square245×245 | 4-Φ17 |
SG150-2 | 6 | 15 | 3200 | 2900 | Φ85 | Φ210 | 100 | Square195×195 | Square245×245 | 4-Φ17 |
