Product Detail
Description:

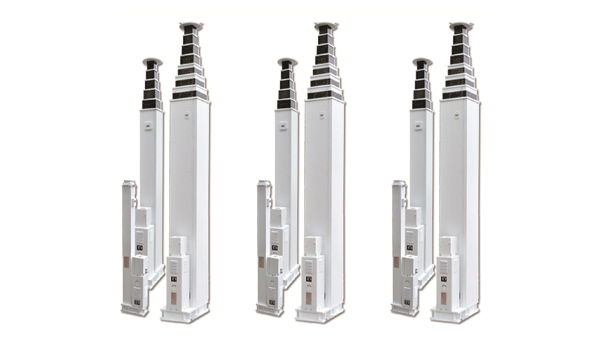

◆This electric telescopic mast is driven by trapezoidal screw,lifting process is table and reliable.With self-locking system,the mast can stop at any position as need.
◆Beside electric lifting,the set can be extended manually,manual handle is supplied.
◆There is rubber seal between each section of mast,tripled protection:anti-water,anti-sand,anti-icing
◆Strong compact design ensures bending,torsion and 8 grade wind resistance.
Specifications:
HeightCM/ Paylaod KG | Height (M) | Section | Closing height(M) | Max size(mm) | Vertical Payload (kG) | HorizontalPayload (KG) | Rising time （min） | Motor power (W) | Base size (mm) | Fix hole size (mm) | Weight (KG) |
SGD40/50 | 4 | 3 | 1.58 | 99.5 | 50 | 10 | 2 | 180 | 315*164 | 345*194 | 40 |
SGD40/100 | 4 | 3 | 1.6 | 118 | 100 | 12 | 2 | 180 | 315*164 | 345*194 | 40 |
SGD60/50 | 6 | 4 | 1.82 | 118 | 50 | 10 | 3.5 | 180 | 315*164 | 345*194 | 50 |
SGD60/100 | 6 | 4 | 1.85 | 138.5 | 100 | 12 | 4.5 | 180 | 335*172 | 365*202 | 65 |
SGD80/50 | 8 | 5 | 1.98 | 138.5 | 50 | 10 | 5 | 180 | 335*172 | 365*202 | 70 |
SGD80/100 | 8 | 5 | 2.0 | 162 | 100 | 12 | 5 | 370 | 380*194 | 350*164 | 90 |
SGD100/50 | 10 | 6 | 2.1 | 162 | 50 | 10 | 5.5 | 370 | 380*194 | 350*164 | 100 |
SGD100/100 | 10 | 6 | 2.16 | 189 | 100 | 12 | 5.5 | 370 | 380*194 | 350*164 | 140 |
SGD120/50 | 12 | 7 | 2.22 | 189 | 50 | 10 | 5.5 | 370 | 380*194 | 350*164 | 125 |
SGD120/100 | 12 | 7 | 2.3 | 230 | 100 | 12 | 5.5 | 750 | 500*280 | 530*310 | 265 |
SGD150/50 | 15 | 7 | 2.74 | 230 | 50 | 10 | 7 | 750 | 500*280 | 530*310 | 265 |
SGD150/100 | 15 | 8 | 2.62 | 275 | 100 | 12 | 6 | 750 | 500*280 | 530*310 | 320 |
SGD185/50 | 18.5 | 8 | 3.0 | 275 | 50 | 10 | 7.5 | 750 | 500*280 | 530*310 | 355 |
SGD180/100 | 18 | 8 | 3.0 | 326 | 100 | 12 | 10 | 750 | 595*374 | 625*404 | 460 |
SGD198/50 | 19.8 | 9 | 3.0 | 326 | 50 | 10 | 9.5 | 750 | 595*374 | 625*404 | 465 |
